Parts Diagrams
Battery & ignition Engine, cylinder etc. Gearbox Cooling Crank Disk Brake

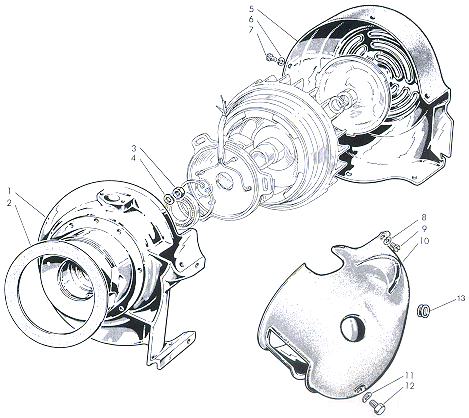

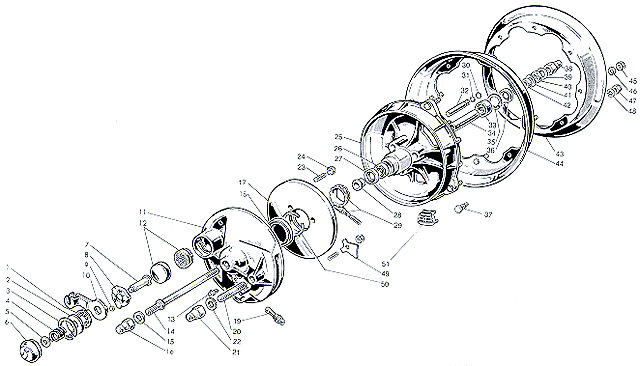

Parts diagram for battery, ignition & horn for Lambretta Series III Parts diagram for Lambretta Series III engine Gearbox diagram for Lambretta Series III engine Parts diagram for Lambretta Series III cooling Parts diagram for Lambretta Series III crank Disk brake exploded diagram as fitted to TV175, GP200 & SX200
Badges & Seats Frame   Clutch Control cables Frame trim Forks

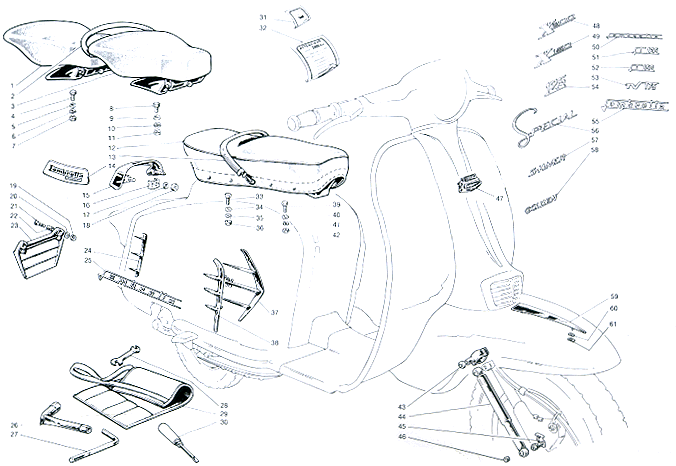

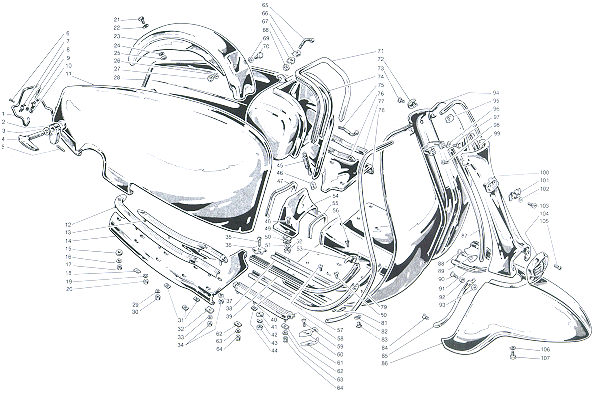

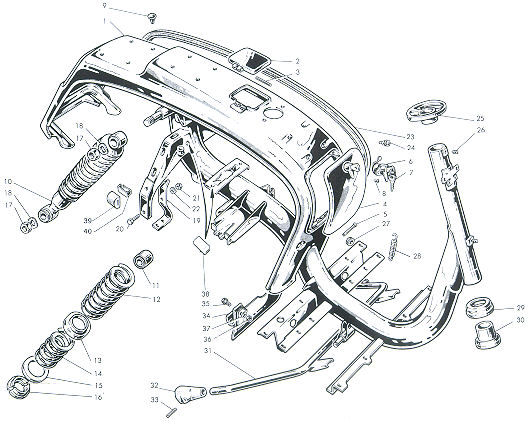

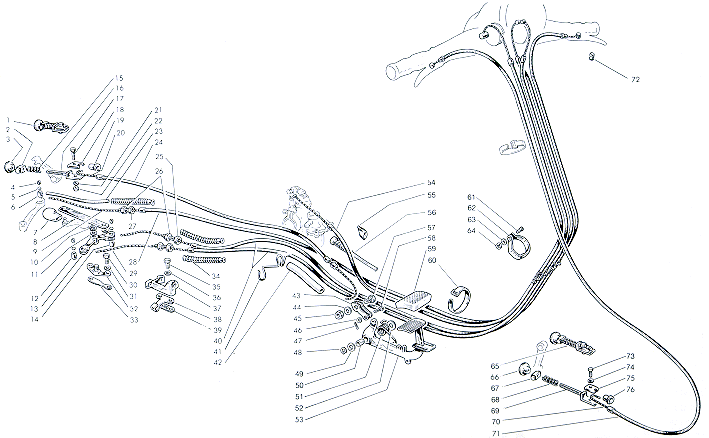

Parts diagram for badges & seats for Lambretta Series III frame Parts diagram for Lambretta Series III frame Parts diagram for Lambretta Series III clutch Parts diagram for cabling Parts diagram for Lambretta Series III trim Parts diagram for Lambretta Series III fork assembly
